DIY Motorcycle tools

By AdvWisdom Last updated Jul 14, 2020

1. The wrenches are axle wrenches obviously. I mainly did them for me and buddies with KTM so 32mm & 27mm. But then a bunch of my local buddies wanted them for DR650, DRZ, XRLs, KLR etc. I made whatever people wanted. The small hex is a 12mm hex and I cut a piece of cromo 12mm hex and pressed it in there to remove the front axle on the Husqvarna TXC bikes.

  I started to get carried away and was going to powdercoat them but I found an anodizer who did them in hard mil black for $75 and that was a deal. The laser was fun just to etch off the anodizing and give them a little character. I can report that they do work well, my buddies last weekend with a couple

  Click to expand…

  Can I be your buddy?

  #46
2. vtwin, Sep 28, 2014

  #47

  vtwinAir cooled runnin’ mon

  Joined:

  Jan 11, 2005

  Oddometer:

  9,656

  Location:

  NorCal

  Clutch spring tool.

  #47
3. thump_co, Feb 12, 2015

  #48

  thump_co..ouch

  Joined:

  Feb 23, 2011

  Oddometer:

  2,530

  Location:

  8532′

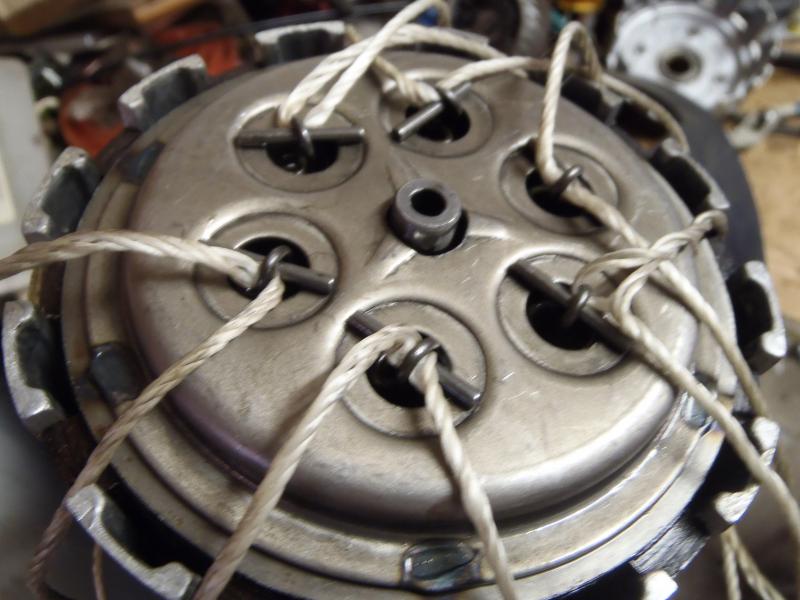

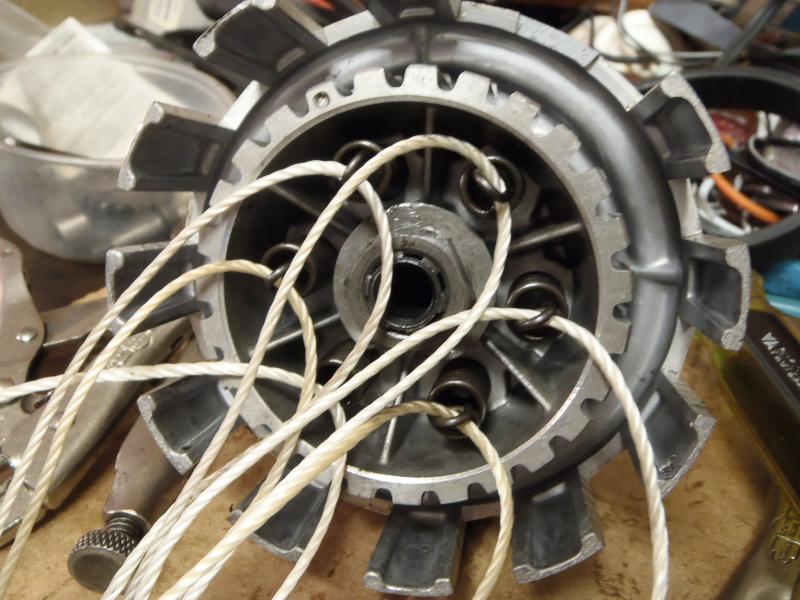

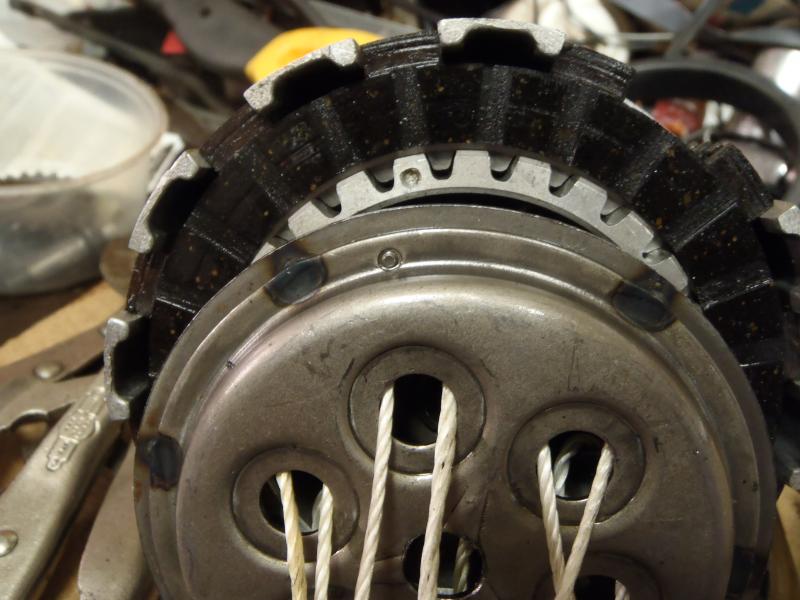

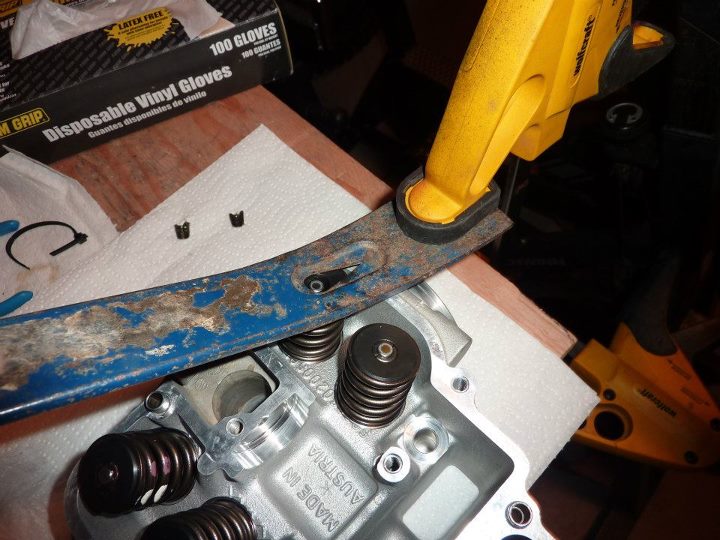

  Not so much “made”, as improvised, but got ‘er done.

  #48
4. jad3675, Feb 12, 2015

  #49

  jad3675Been here awhile

  Joined:

  Jan 3, 2008

  Oddometer:

  144

  Location:

  Cincinnati, Ohio

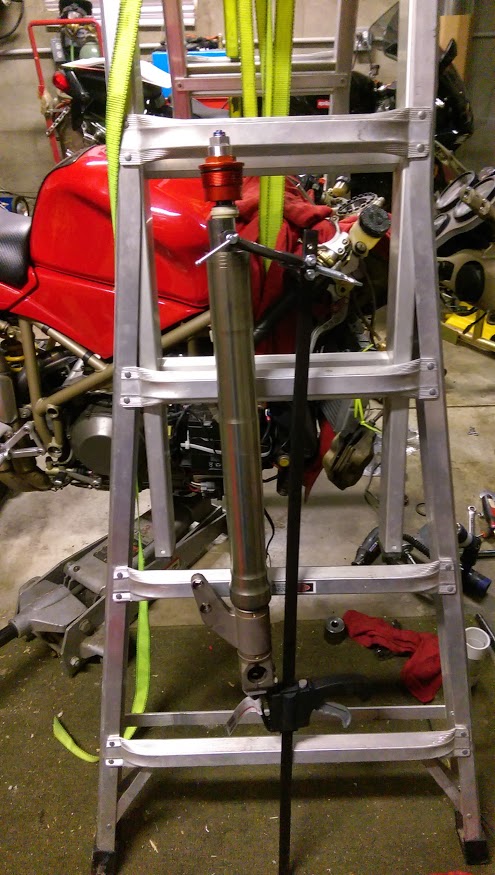

  One HF bar clamp plus a 3-way edge clamp and you have a one person fork spring compressor.

  John

  #49
5. EmBeeZedEx, Feb 12, 2015

  #50

  EmBeeZedExBeen here awhile

  Joined:

  Jul 28, 2014

  Oddometer:

  140

  Location:

  Seatown, PNWet

  O2 sensor socket and a C-clamp. The shiny parts on the socket are where I polished it a bit on the sander and buffer. If I hadn’t then those shiny parts would instead likely be aluminum scraped out of the lifter bore.

  #50
6. Desert Skies, Feb 12, 2015

  #51

  Desert SkiesOne brick shy…

  Joined:

  Mar 2, 2004

  Oddometer:

  2,586

  Location:

  Tejas

  I’m a cheap bastige so I make a lot of tools and fixtures. Here are a couple.

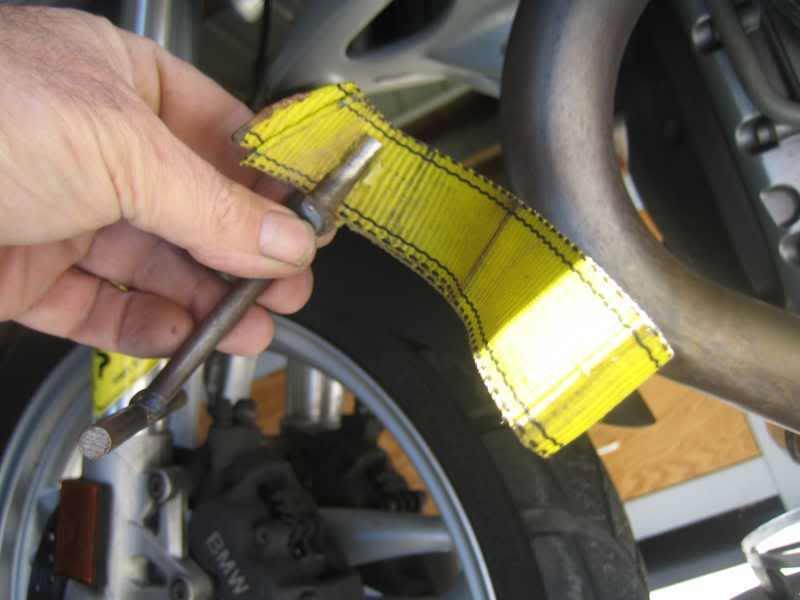

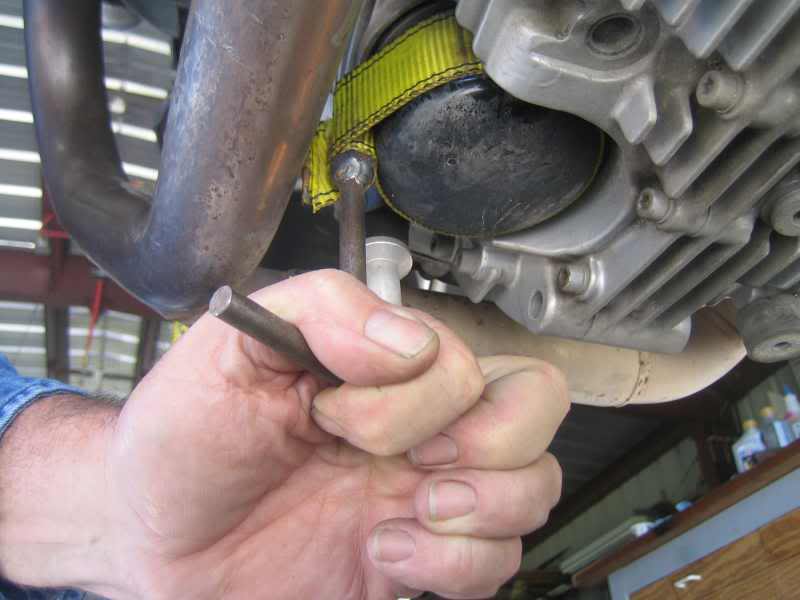

  R1200 filter wrench.

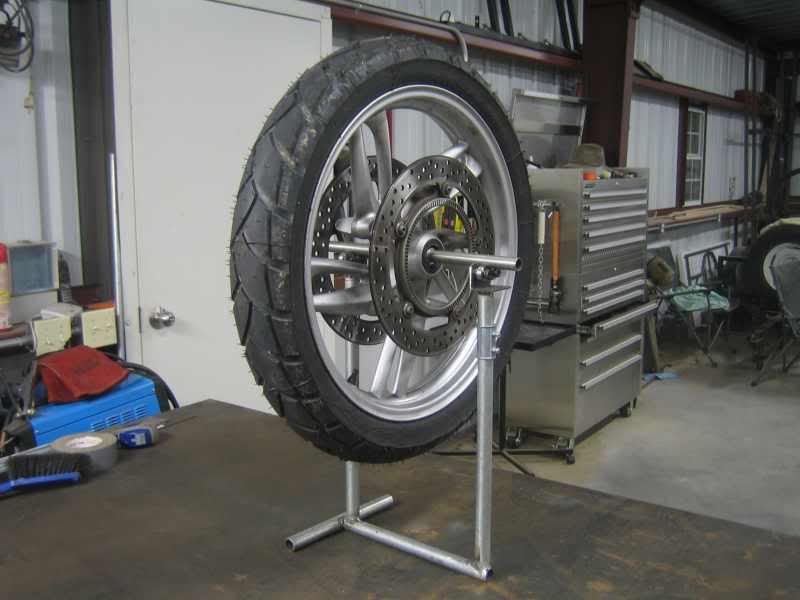

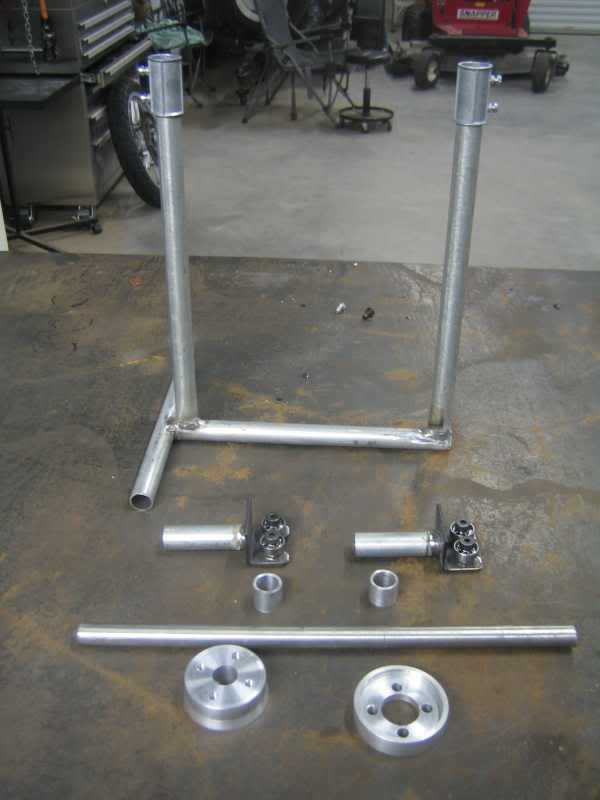

  Wheel balancer…

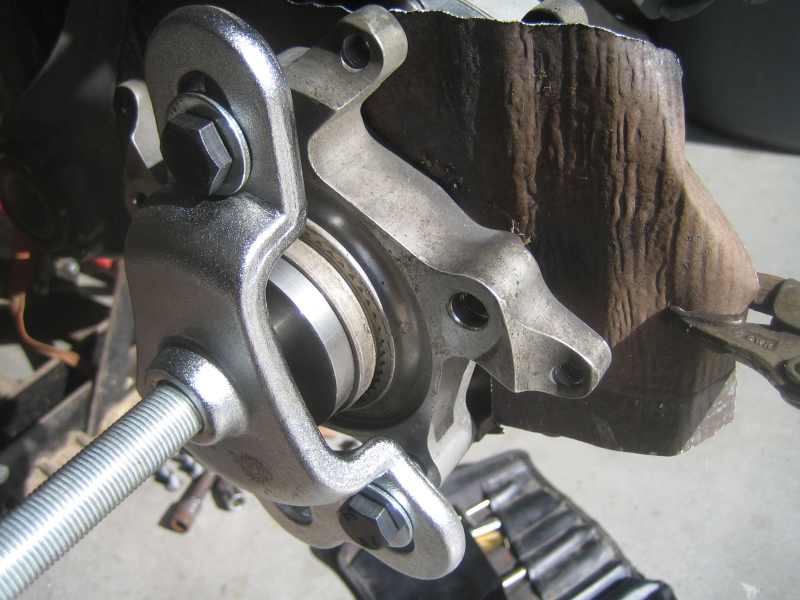

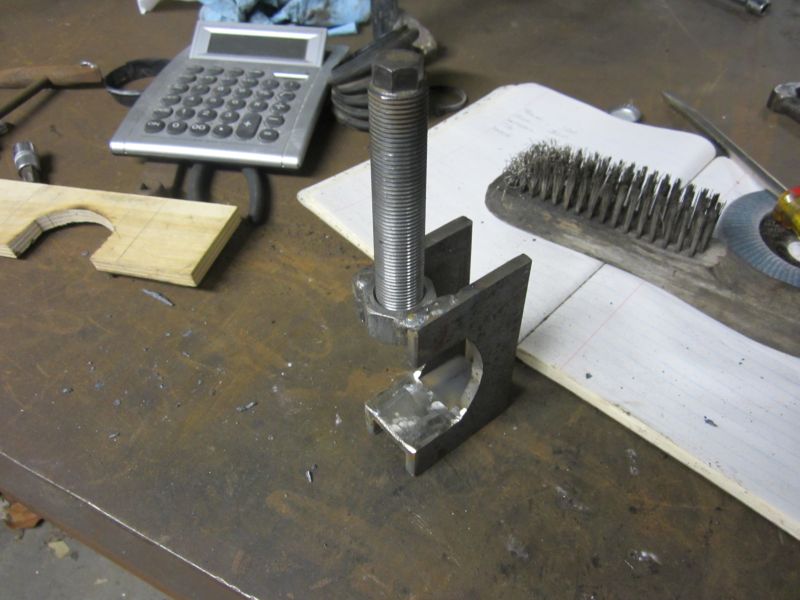

  Wheel flange puller and high tech heat shield.

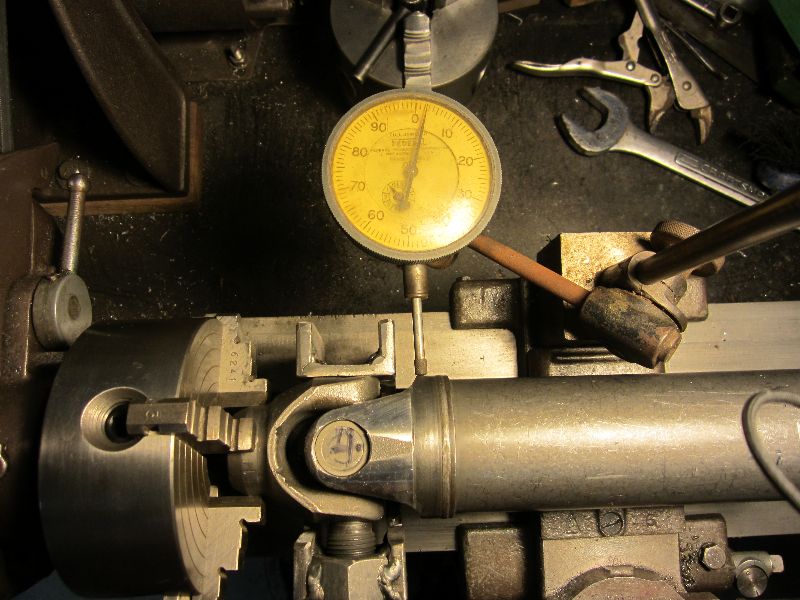

  U-joint alignment press.

  #51

Remove ads, support ADV.

thump_co, Feb 12, 2015

#52

thump_co..ouch

Joined:

Feb 23, 2011

Oddometer:

2,530

Location:

8532′

EmBeeZedEx said: ↑

O2 sensor socket and a C-clamp. The shiny parts on the socket are where I polished it a bit on the sander and buffer. If I hadn’t then those shiny parts would instead likely be aluminum scraped out of the lifter bore.

Nice! This thread is awesome.

#52
kyrbz, Feb 13, 2015

#53

kyrbzAdventurer

Joined:

Feb 12, 2015

Oddometer:

33

Location:

US – Midwest

Needed to make an odd sized M20.5 x 1.25 puller for a 1951 Aermacchi I was working on.

#53
GS Addict, Feb 13, 2015

#54

GS AddictPepperfoolSupporter

Joined:

Sep 24, 2006

Oddometer:

7,349

Location:

Sunshine Coast B.C.

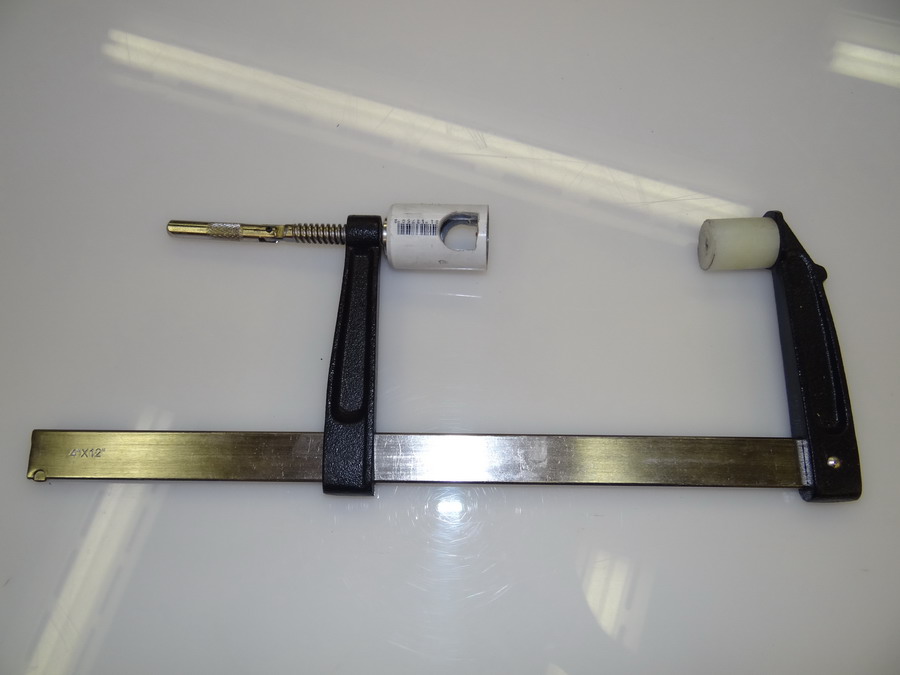

Oilhead valve spring compression tool

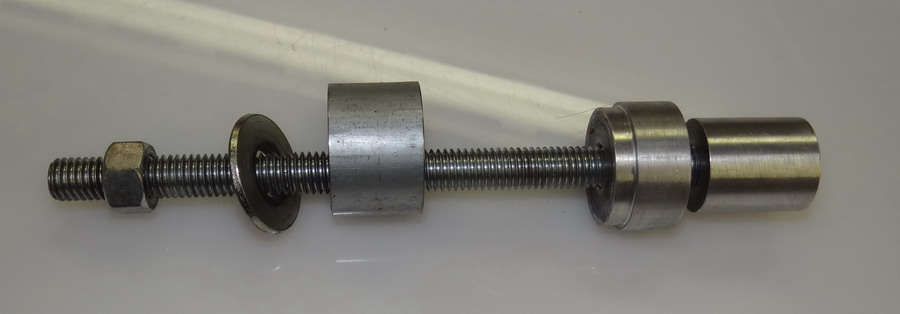

Paralever bearing cup removal/install tool

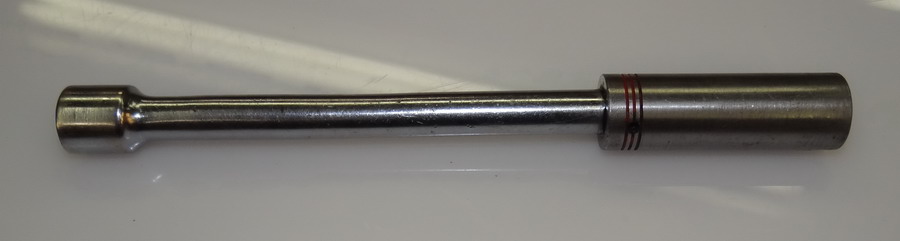

Spark plug tool (extension is permanently affixed)

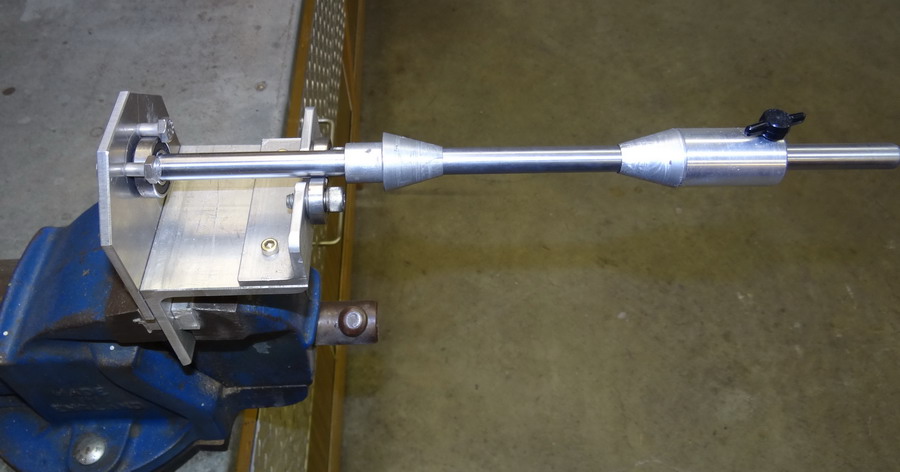

Wheel balancing tool

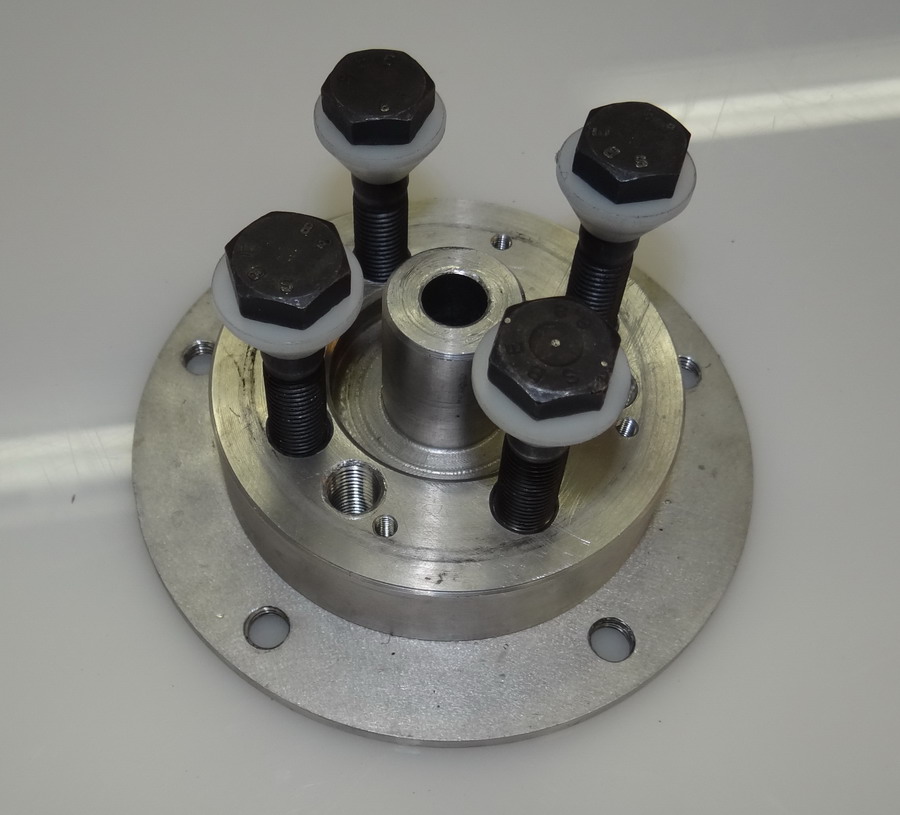

3,4,5 bolt BMW rear wheel balance adapter
